”Creative New Values in Life and Dreaming of a Better Future for our Customers”

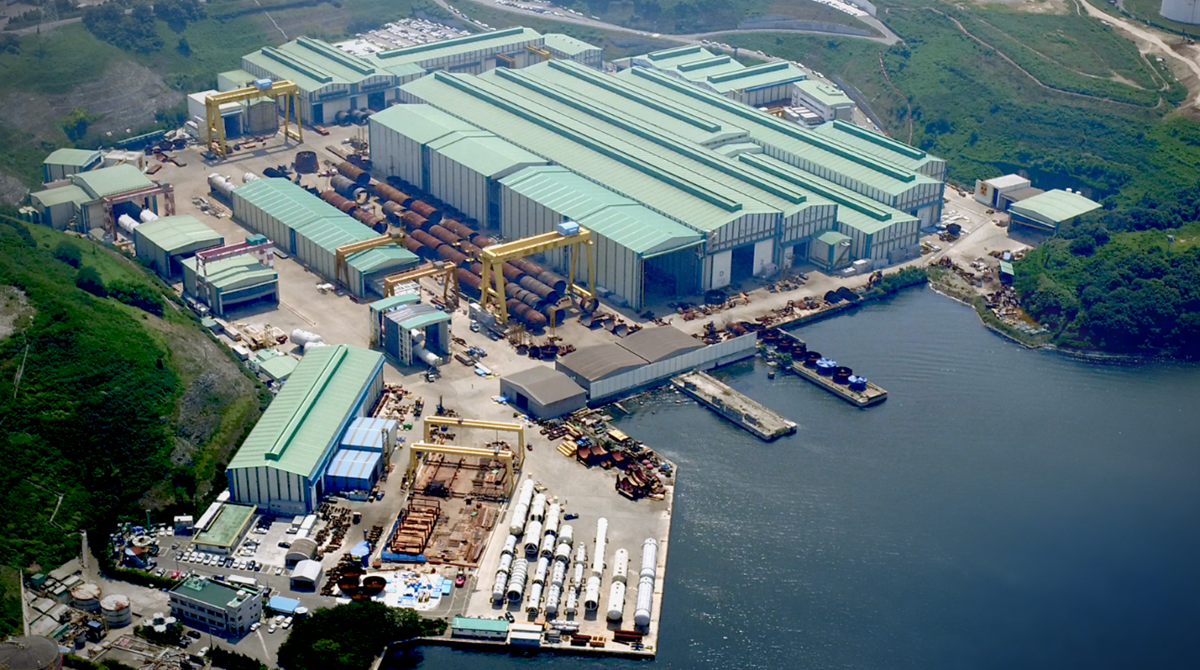

Yongjam Works (Headquarters)
Address 353, Yongjam-ro, Nam-gu, Ulsan
Map
TEL +82-52-231-7300
FAX +82-52-238-7291

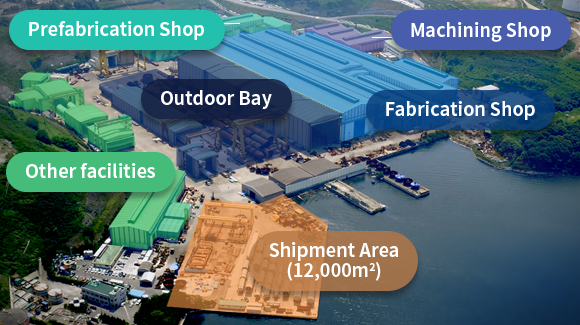

Main Facilities
Land 248,918m²
Main Products CPE/On & OffShore Module / Steam Drum & BOP
지도 지도
앞 지도 앞 지도
Main Facilities

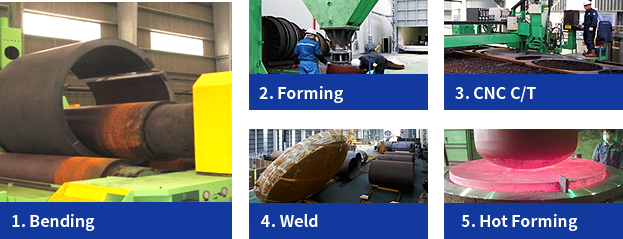

PrefabricationShop
작은맵
Total Area : 6,648 m2
  • 1. Bending - Cold Bending : Max Capa Ø8,000 / 4,250L / 70T
    - Hot Bending : Max Capa Ø4,000 / 4,250L / 180T
  • 2. Forming - Max Capa. 5,000T Press(Max ID7,000 / 105T)
  • 3. Cutting - CNC Cutting : Max Capa. 40T
    - Plasma : Max Capa. 80T
    - Oxygen torches
place place

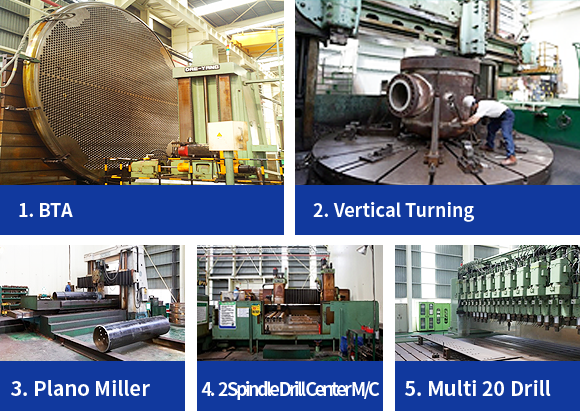

Machining Shop
작은맵
Total Area : 3,360 m2
  • 1. BTA (Max Ø6,000×1,000T)
  • 2. Turning (Max Ø4,870×3,600H)
  • 3. Plano Miller (Max 1,500H×2,350×4,150)
  • 4. 2 Spindle Drill Center M/C (Y2,900-X5,700)
  • 5. Multi 20 Drill (Max 5,000×12,000)
place place
Fabrication Shop
작은맵

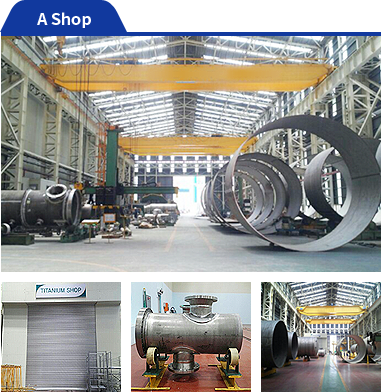

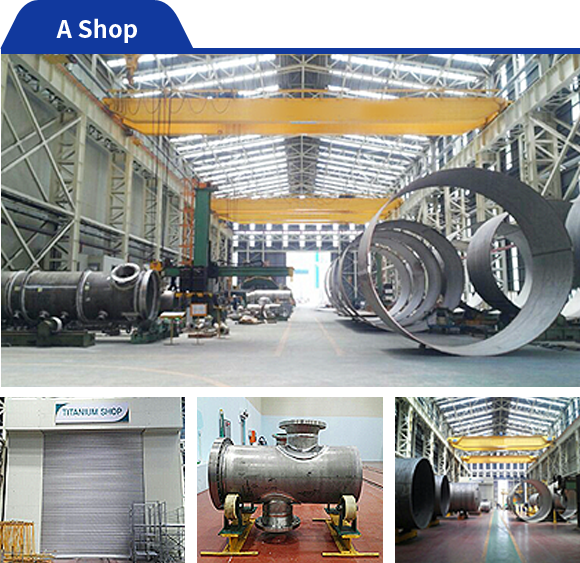

A Shop / B Shop C Shop / D Shop
  • place place
    • Area
      30mw×16mh×220ml (6,600 m2)* Titanium Shop : 330m2 (11mw×8mh×30ml)
    • Main
      Products
      SS, High Alloy & Titanium Equipment
  • place place
    • Area
      30mw×20/8mh×270ml (8,100m2)
    • Main
      Products
      Heat Exchanger
  • place place
    • Area
      30mw×20mh×250ml (7,500m2)
    • Main
      Products
      Large-sized Pressure vessel
  • place place
    • Area
      40mw×20mh×250ml (10,000m2)* Titanium Shop : 330m2 (11mw×8mh×30ml)
    • Main
      Products
      Large-sized Pressure vessel
Outdoor Bay
작은맵
  • place place
    • Area
      30mw×28mh×250ml (7,500m2)Covered by moving Shelter (30mw×28mh×50ml)
    • Main
      Products
      Large-sized Pressurevessel / Module
  • place place
    • Area
      45mw×30mh×300ml
      (13,500m2) Crane: 500Ton (250Ton+250Ton)
    • Main
      Products
      Large-sized Pressure vessel
  • place place
    • Area
      30mw×15mh×200ml(6,000m2)Covered by moving Shelter
      (27mw×15mh×60ml)
    • Main
      Products
      Module
Outdoor Bay
작은맵
01 02
  • place place
    • Area
      22mw×16mh×70ml (1,540m2) Cutting / Bending of SUS & H.A
  • place place
    • Area
      5 RT Bunkers Total Area : 1,174m2
      Max. 12mw x 12mh x 30ml (360m2)
  • place place
    • Area
      15mw×15mh×30ml (450m2)
      11mw×11mh×20ml (220m2)
  • place place
    • Area
      24mw×12mh×80ml (1,920m2)
      Max. Test Pressure : 450 Bar
  • place place
    • Area

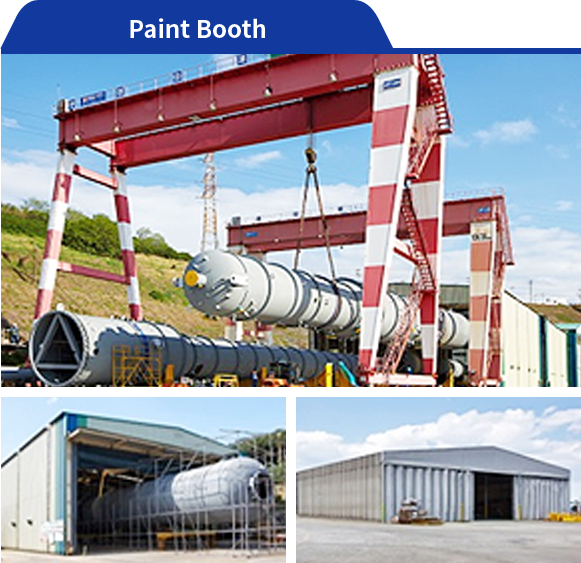

      3 Paint Booth Total Area : 6,442m2
      Max. 30mw x 12mh x 150ml (4,500m2)
  • place place
    • Area
      Berthing Capacity 12,000DWT
      Depth of water : 6M
  • place place
    • Area
      16.2mw×5mh×15ml (243m2)
  • place place
    • Impact / Tension / Bending / Hardness Test
